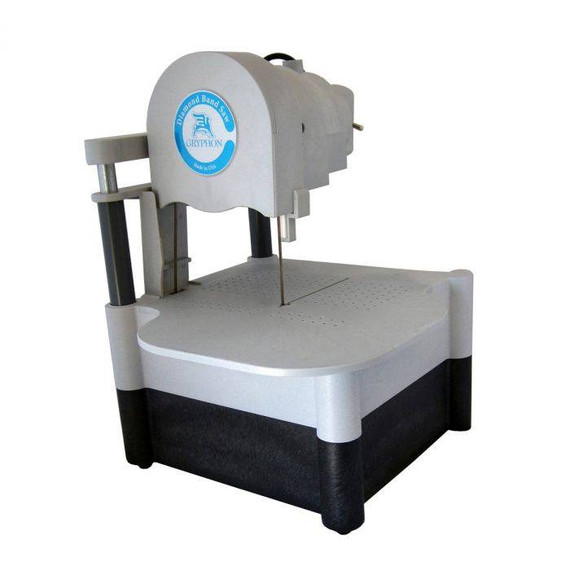

Gryphon 42" C-40 CR Custom AquaSaw.
The 42" (overall blade length) AquaSaw features 5 1/2" of vertical clearance between the table deck and the upper housing making it easier to cut larger pieces of material. The 42" AquaSaw features the same corrosion resistant parts as does the standard 37" AquaSaw.
Gryphon Custom 42" AquaSaw Diamond Band Saw
- Simple construction with few moving parts
- New High Speed Motor for fastest cutting available. Motor has sealed bearing for improved resistance to corrosion.
- Direct drive - no belts or pulleys
- Powerful anodized motor located on top, away from the water. A shield is provided around the bottom of the motor to deflect salt water splash.
- High Quality Stainless Steel Diamond Coated blade
- Huge water reservoir under the work surface
- One square foot of unobstructed work surface
- Under table blade guide and new blade guide above table.
- Stainless Collars for wheels
- Stainless Shaft and Lower Block iodized
- Stainless Blade standard (optional Diamond Blade)
- Motor: 1/3 hp Direct Drive DC
- Maximum Clearance: 4.5" (5.5" with Upper Guide Removed)
- Blade Speed: 40 mph
- Platform Area: One Square Foot
- Weight: 18.0 lbs
- Coolant System: Recirculating water
- Coolant Reservoir: 10 inches by 9 inches
- Tension Adjustment: Single Knob - Semi-automatic
- Blade Dimensions: 42" circumference, .020" wide, .140" deep
- Warranty on saw : 1 year
